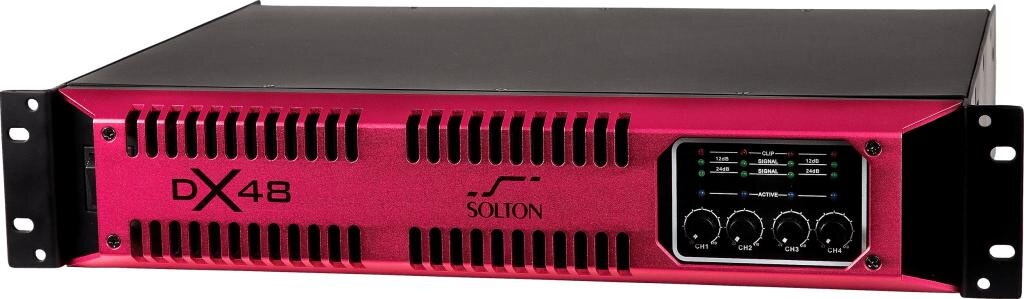

Solton DX 48, User Manual
Type : 4 Channel Amplifier
Output Power 8 ohms per channel (watt) : 800 W
Output Power 4 ohms per channel (watt) : 1200 W
Frequency Response : 20Hz - 22KHz (+-0.5dB)
Damping Factor : >500 (8 ohms, 1 kHz)
S/N Ratio : 112 dB
Input Impedance balanced : 20 k ohms (10 k ohms)
Input Connectors : 3-pin XLR, electronically balanced
Output Connectors : Speakon
Protection Circuit : DC protect, Short circuit protect, High temperature protect, current inrush Input over load protect (Limiter), Output over load protect, Soft startup protect
Controls Front : main switch, volume control (4 channels)
Controls Rear : Stereo / Mono (4 channels)
Cooling : Continuously variable-speed fan
Class : H
Power Supply : AC 230 / 50, 60 Hz
Dimensions mm (WxHxD) : 483 x 88 (2U) x 375
Weight : 9 kg
