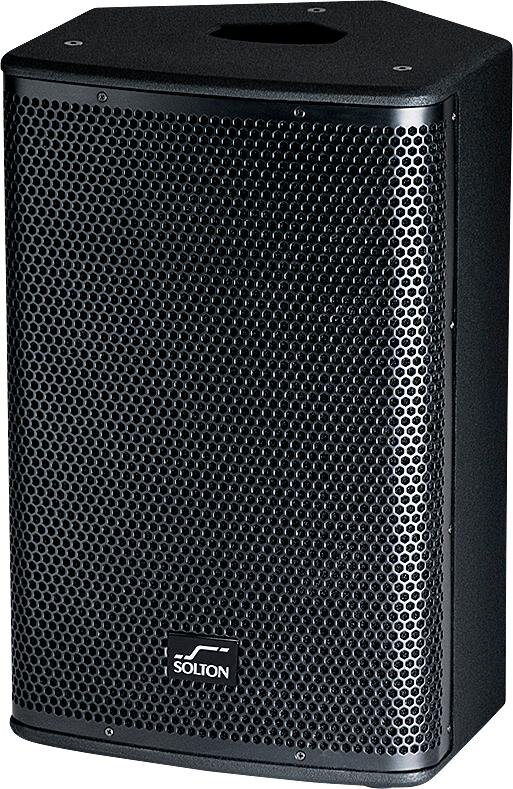

Solton AS 12/2, 2-pásmová pasívna sústava
- 400W
- 12" + 1,75"
- 7x M8 závesný bod
Solton AS 12/2 - Data Sheet
Loudspeaker Type : Two-way, Passive
Frequency Range (-10dB) : 50 Hz - 20 kHz
Frequency Response (+- 3dB) : 60 Hz - 18 kHz
Coverage Pattern : H 100° x V 50° nominal (user-rotatable)
Power Handling : 400W continuous, 1600 W peak
System Sensitivity (1w/1m) : 98 dB
Maximum SPL (Calculated at 1m) : 124 dB continuous, 130 dB peak
HF Driver : 1,75"voice coil, 1" exit compression driver
LF Driver : 12", 3" voice coil speaker
Nominal Impedance : 8 ohms
Crossover : 2,7 kHz
Protection : PTC driver protection
Active Tuning / Features : n/a
Enclosure : Multi-angle, 15 mm birch plywood
Finish : Black textured paint
Fittings : 7x M8 inserts,1x bar handle, pole-mount socket
Protective Grille : Black perforated steel with acoustic transparent foam backing
Connectors : 2 x NL4, Pins 1+/1-
Dimensions mm (WxHxD) : 380 x 600 x 350
Weight : 17 kg
