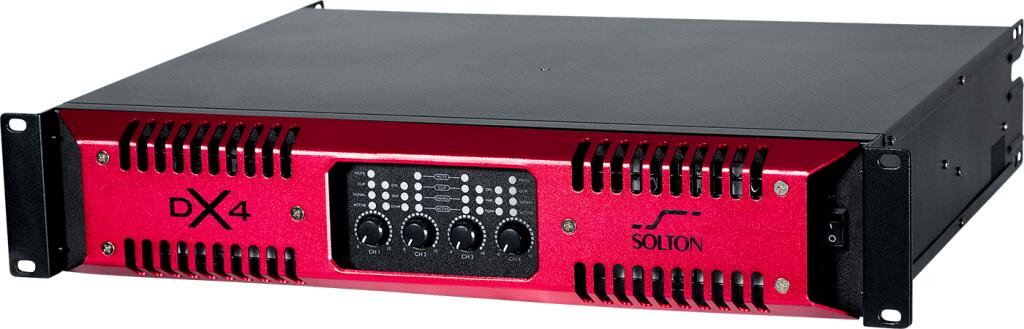

Solton DX 4, 4 x 2200W/4ohm

  Solton DX 4, User Manual

Output Power 8 ohms per channel (watt) : 1300 W
Output Power 4 ohms per channel (watt) : 2200 W
Output Power 2 ohms per channel (watt) : 2600 W
Output Power 8 ohms bridged (watt) : 2x 4200 W
Output Power 4 ohms bridged (watt) : 2x 5000 W
THD : < 0,05 % (1 kHz, 8 ohms)
Frequency Response : 20 Hz, 34 kHz +0 /-1 dB
Damping Factor : > 1000 (8 ohms, 1 kHz)
S/N Ratio : 112 dB
Input Impedance balanced : 20 k ohms (10 k ohms)
Input Connectors : 3-pin XLR, electronically balanced
Output Connectors : Speakon

Channel separation : at 1 kHz > 70 dB
Protection Circuit : ACL, IGM, PFC, Auto Ramp, short circuit, DC Voltage, turn on/off transient, current inrush, sub/ultrasonic input
Voltage Gain (dB) : 23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Controls Front : main switch, volume control (4 channels)

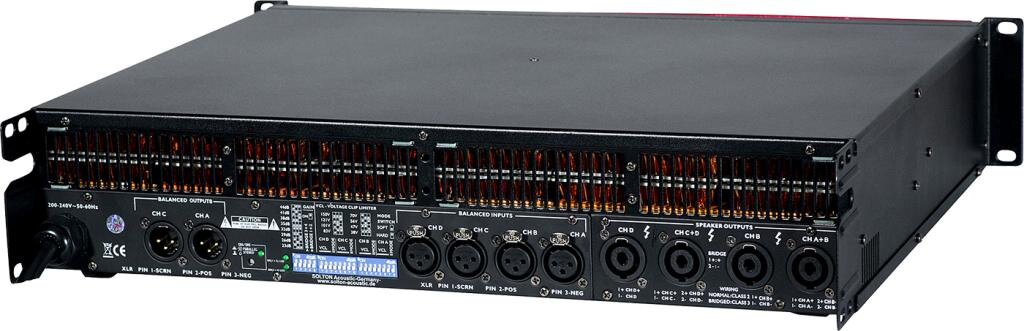

Controls Rear : parallel / stereo, gain, voltage clip limiter, mode switch, bridge
Cooling : Step switched fan
Class : TD
Power Supply : 150-260 V 50/60 Hz
Dimensions mm (WxHxD) : 483 x 88 (2U) x 396
Weight : 13 Kg
