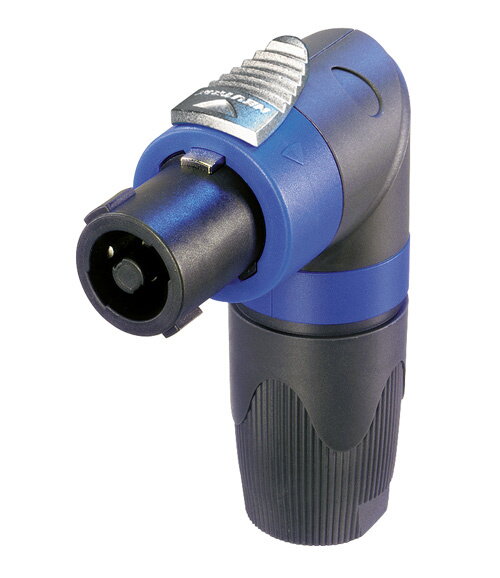

Neutrik NL4FRX

konektor speakon 4-pinový, káblový, lomený

Dostupnosť: Skladom
Doručíme dňa:

Výrobca: NEUTRIK

Electrical

Contact resistance : < 2 mΩ (inner) (after lifetime)

Dielectric strength : 4 kVdc (peak)

Insulation resistance : > 1 GΩ (after dampheat)

Rated current per contact : 40 A rms continuous

Rated current per contact : 50 A audiosignal, duty cycle 50 %

Rated voltage : 250 V (Insulation)

Attention : speakON is NOT to be used as an AC mains or power supply connector!

Mechanical

Cable O.D. : 7 - 14.5 mm

Cable retention : ≥ 220 N (subject to cable O.D. and material)

Lifetime : > 5000 mating cycles

Wiresize : 4 mm² / 6 mm² (screw type terminals/soldering)

Wiresize : 12 AWG / 10 AWG

Wiring : screw type terminals or soldering

Locking device : Quick Lock (latch)

Material

Contact plating : 4 µm Ag

Contacts : Brass (CuZn39Pb3)

Insert : PBTP 20 % GR

Locking element : Zinc diecast (ZnAl4Cu1)

Shell : PBTP 20 % GR

Strain relief : Polyacetal (POM)

Environmental

Flammability : UL 94 HB

Solderability : Complies with IEC 68-2-20

Temperature range : -30 °C to +80 °C
