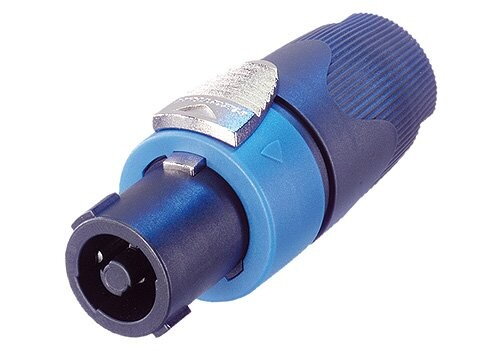

Neutrik NL4FX

konektor speakon 4-pinový, káblový

Dostupnosť:
Doručíme dňa:

Product
Title	NL4FX
Connection Type	speakON
Gender	female
Electrical
Contact resistance	< 2 mΩ (inner) (after lifetime)
Dielectric strength	4 kVdc (peak)
Insulation resistance	> 1 GΩ (after dampheat)
Rated current per contact	40 A rms continuous
Rated current per contact	50 A audiosignal, duty cycle 50 %
Rated voltage	250 V (Insulation)
Attention	speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Cable O.D.	7 - 14.5 mm
Cable retention	≥ 220 N (subject to cable O.D. and material)
Lifetime	> 5000 mating cycles
Wiresize	4 mm² / 6 mm² (screw type terminals/soldering)
Wiresize	12 AWG / 10 AWG
Wiring	screw type terminals or soldering
Locking device	Quick Lock (latch)
Material
Contact plating	4 µm Ag
Contacts	Brass (CuZn35Pb2)
Insert	PBTP 20 % GR
Locking element	Zinc diecast (ZnAl4Cu1)
Shell	PBTP 20 % GR
Strain relief	Polyacetal (POM)
Environmental
Flammability	UL 94 HB
Standard compliance	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C
