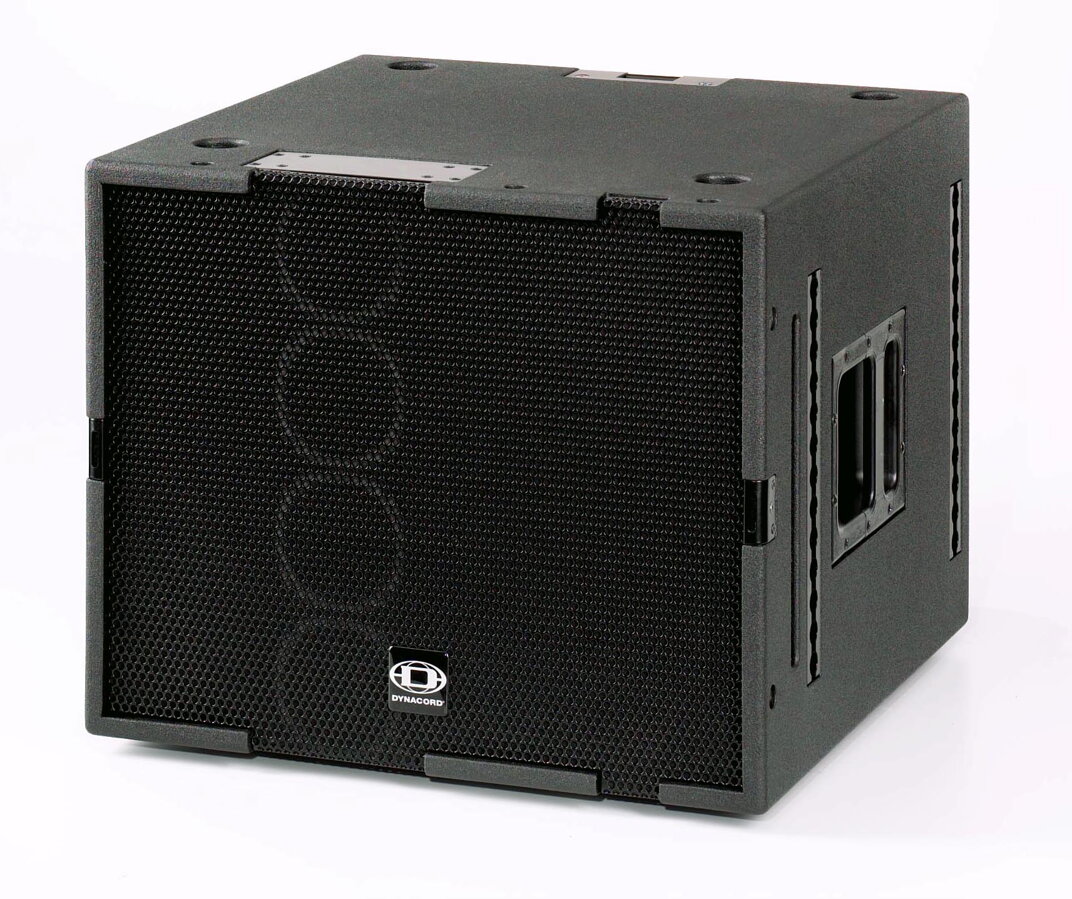

COBRA-4-FAR je stredovýšková 3-pásmová sústava určená na veľké vzdialenosti.

Je osadená 15"basovým reproduktorom EVX155, 4 kusmi C8 a 3 kusmi vyskových driverov EV DH2T.

Na bočných stenách sú osadené ANCRA závesné elementy.

  Dynacord COBRA-4 FAR Datasheet

  Dynacord COBRA Katalóg

  Dynacord COBRA Handbuch

Cabinet: MID - HIGH Cabinet

Configuration: Compact line array / active 3-way

Nominal impedance: LOW - MID - HIGH: 8 Ohms - 8 Ohms - 8 Ohms

Rated power RMS: LOW - MID - HIGH: 400 W - 200 W - 200 W

Program power: LOW - MID - HIGH: 800 W - 400 W - 400 W

SPL 2,83 V / 1m 1 W / 8 Ohm: 100 dB

Max. SPL 1m (calculated): 131 dB

Frequency response ( -10dB ): 90Hz - 17kHz

measured with DSP 244 preset: COB4TOPFAR200203

Coverage angle 1 kHz (-6dB): H 120° x V 30°

Coverage angle 10kHz (-6dB): H 90° x V 5°

Active crossover frequency: 124Hz - 700Hz - 4kHz

Voice coil tracking protection : LOW - MID - HIGH

Components HIGH: DH 2T Line array

Components MID: C8 Line array

Components LOW: EVX155

Connector wiring HIGH: 8-pole 4+/4-

Connector wiring MID: 8-pole 3+/3-

Connector wiring LOW: 8-pole 2+/2-

Connector model: Speakon 2x NL8 MPR

Rozmery:  (WxHxD) mm: 600 x 495 x 717

Váha : 63.5 kg
