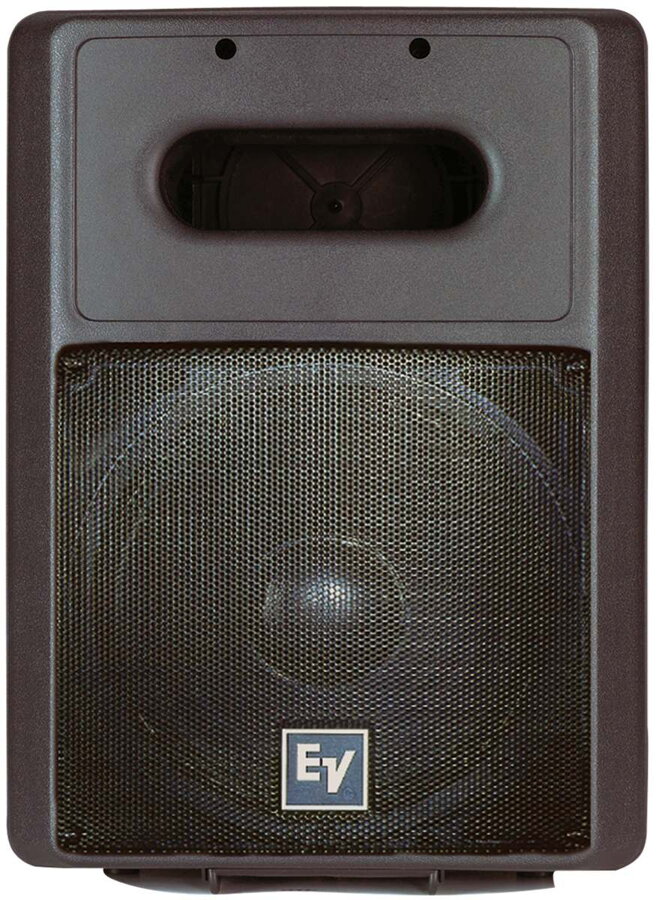

Rad reprosústav Sx dopĺňa sústava subbas Sb122:
Sb122 - subbas 12", 400W/8 ohm - je možné pripojiť ku sústavám Sx100 alebo Sx300, prípadne Zx1 jednoducho pralelne bez potreby použitia crossovera.
Na hornej stene má zabudovaný otvor pre zasunutie dištančnej tyče, na ktorú je možné postaviť sústavu Zx1 alebo Sx100 (Sx300).
| Axial Sensitivity (SPL, 1 W @ 1 m) |
99 dB Half Space |
| Chassis Size |
304.8 mm (12") |
| Color |
Black |
| Coverage (Nominal -6 dB) |
Essentially Omni |
| Input Connections |
2 four-pin Speakon |
| Nominal Impedance |
8 Ω |
| Speaker Type |
Subs |
| Frequency Response (-10 dB) |
43 - 200 Hz |
| Internal Crossover |
Yes |
| Recommended High-Pass Frequency |
40 Hz 12 dB/octave |
| Sensitivity 1 W/1 m |
99 dB |
| Max. SPL/1m (calc) |
131 dB Half Space |
| System Power Handling (Continuous/Program/Peak) |
400/800/1600 Watts |
| LF Transducer |
12-inch EVS12SB |
| Crossover Frequency |
160 Hz |
| Minimum Impedance |
6 Ω |
| Flying |
Optional |
| Height |
586 mm (23.07") |
| Width |
429 mm (16.89") |
| Depth |
312 mm (12.28") |
| Weight Net |
14.6 kg (32.19 lbs) |
Electro-Voice Sb122 Data Sheet
