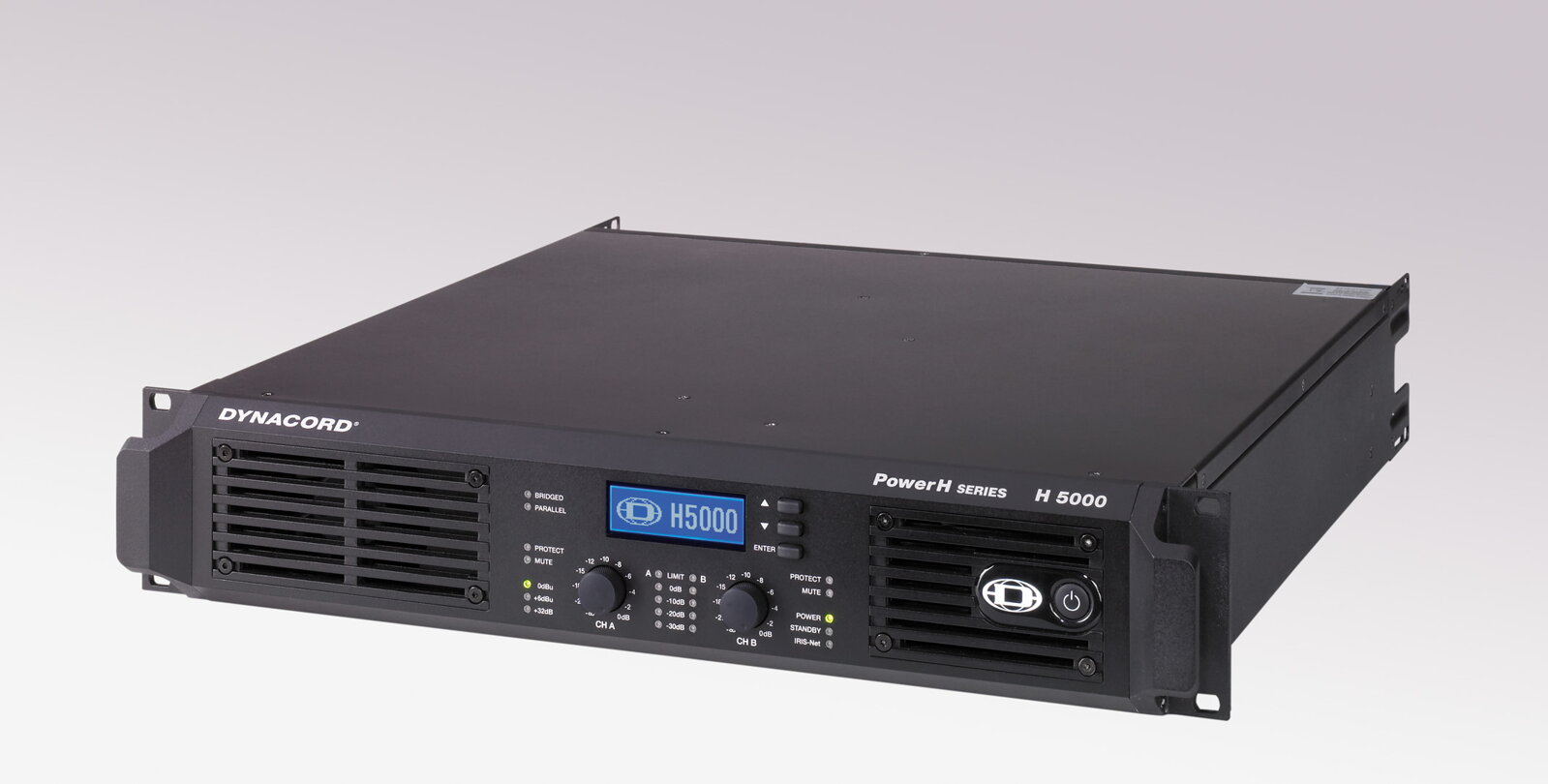

Dynacord PowerH - Datasheet

• Load Impedance : 2Ω, 4Ω, 8Ω
• Maximum Midband, Output Power, 1 kHz, THD=1% : 2Ω - 3500 W, 4Ω - 2500 W, 8Ω - 1500 W
• Rated Output Power, 20 Hz ... 20 kHz, THD <0.1% : 4Ω - 2100 W, 8Ω - 1050 W
• Max. Single Channel, Output Power, Dynamic-Headroom, IHF-A : 2Ω - 4500 W, 4Ω - 3200 W, 8Ω - 1800 W
• Max. Single Channel, Output Power, Continuous, 1kHz : 2Ω - 4100 W, 4Ω - 2700 W, 8Ω - 1600 W
• Maximum Bridged, Output Power, 1 kHz, THD=1% : 4O - 7000 W, 8O - 5000 W
• Maximum RMS, Voltage Swing, 1 kHz, THD=1% : 125 V
• Power Bandwidth, THD=1%, ref. 1kHz, half power @ 4O : 10 Hz ... 50 kHz
• Voltage Gain, ref. 1 kHz : 41dB / 35 dB / 32 dB (switchable)
• Input Sensitivity, at rated output power @ 8O, 1 kHz : 0 dBu / 6 dBu / 9 dBu (switchable)
• THD at rated output power, MBW=80kHz, 1 kHz : < 0.05 %
• IMD-SMPTE, 60 Hz, 7 kHz : < 0.05 %
• DIM 30, 3.15 kHz, 15 kHz : < 0.02 %
• Max. Input Level : +22 dBu (9,75 Vrms)
• Crosstalk, ref. 1 kHz at rated output power : < -80 dB
• Frequency Response, ref. 1 kHz : < 10 Hz ... 30 kHz (± 1dB)
• Input Inpedance, active balanced : 20 kO
• Damping Factor ,1kHz : > 400
• Slew Rate : 35 V/µs
• Signal to Noise Ratio Amplifier, A-weighted, 32 dB constant gain : 111 dB
• Output Noise , A-weighted : < -70 dBu
• Output Stage Topology : Class-H Grounded Bridge
• Power Requirements : 100 V - 240 V, 50 Hz - 60 Hz; 100 V, 50 Hz - 60 Hz
• Power Consumption, at 1/8 maximum output power @ 4 O : 1450 W
• Protections
• Audio limiters, High temperature, DC, HF, Short Circuit, Back-EMF, Peak current limiters, Inrush current limiters,Turn-on delay, Mains Circuit Breaker Protection, Mains Overvoltage Protection
• Cooling
• Front-to-Rear, 5-stage-fans
• Ambient Temperature Limits : +5°C ... +40°C (40°F ... 105°F)
• Safety Class : I
• Rozmery (WxHxD), mm : 483 x 88.1 x 498
• Váha : 14.5 kg

Možnosť dodať modul diaľkového ovládania RCM-28.
