SL 210 - Data Sheet

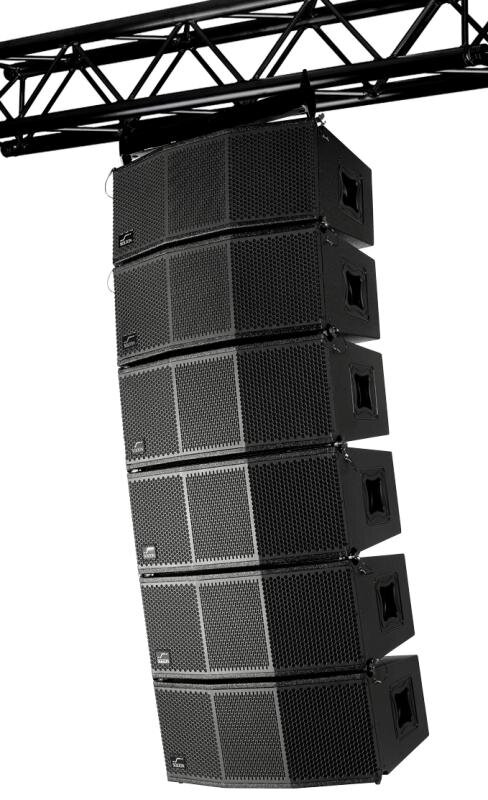

The SL 210 is a 2-way, full range line array cabinet that combines superior sound quality with easiness and flexibility in a simple system.

With a 100°H x 10°V nominal directivity pattern it combines high output capability with excellent sound performance in a compact enclosure, made of 15/21 mm birch plywood.

It features two powerful 10” / 2,5” voice coil Neodym drive units for the mid-bass range, and one Beyma Neodym low-distortion compression driver with a 2,88” voice coil and 1,4“ exit for extended high frequency response.

Základné údaje :

• Dimensions mm (WxHxD)
  680 x 294 x 430
• High output Line Array element
• Passive operation
• Stacked operation possible
• Fullrange capability
• High quality, low distortion HF compression drivers
• Very stable horizontal coverage
• Advanced crossover with HF protection
• Fast, 3-point flying rigging system for up to 12 enclosures
• Compact size
• Only 23 kg

• Frequency Range (-10dB)
  55 Hz - 20 kHz
• Frequency Response (+- 3dB)
  60 Hz -18 kHz
• Coverage Pattern
  H 100° x V 10° nominal
• Power Handling
  800 W continuous, 3200 W peak
• System Sensitivity (1w/1m)
  103 dB
• Maximum SPL (Calculated at 1m)
  132 dB continuous, 138 dB peak

Doporučené s:

• DX 4
• A 218 Sub
• DSP 206 N
