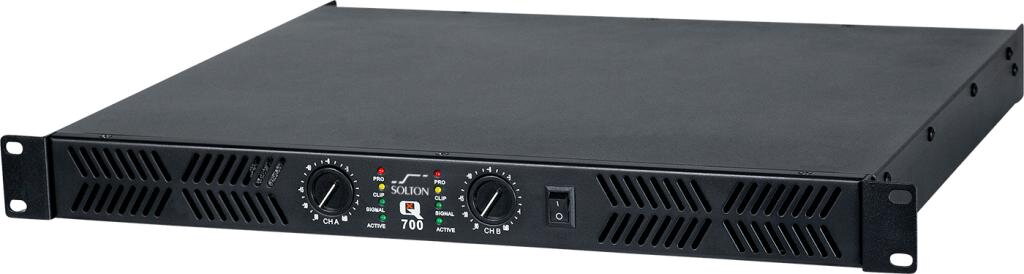

QX700 - User Manual
Type : 2 Channel Amplifier
Output Power 8 ohms per channel (watt) : 200
Output Power 4 ohms per channel (watt) : 350
Output Power 8 ohms bridged (watt) : 650
THD 20 Hz - 20 kHz : < 0,1 %
Damping Factor : (10-400 Hz at 8 ohms) 300:1
Impedance : 20 K ohms Bal. / 10 K ohms Unbal.
Power Switch : On / Off
Volume : Ch 1 / Ch 2
Input connectors : XLR Female
Link connectors : XLR Male
Mode Switch : Bridge / Stereo / Parallel
Ground Switch : 1,4 V / 1,0 V / 0,775 V
Output connectors : Speak / Binding Posts
Power Supply : 230 V / 50 Hz
Protection Circuit : Short circuit protect, overload protect
Soft Start : Yes
Fuse : 8 A
Class : AB
Dimensions mm (WxHxD) : 483 x 44 (1U) x 400
Weight : 10.5 kg
