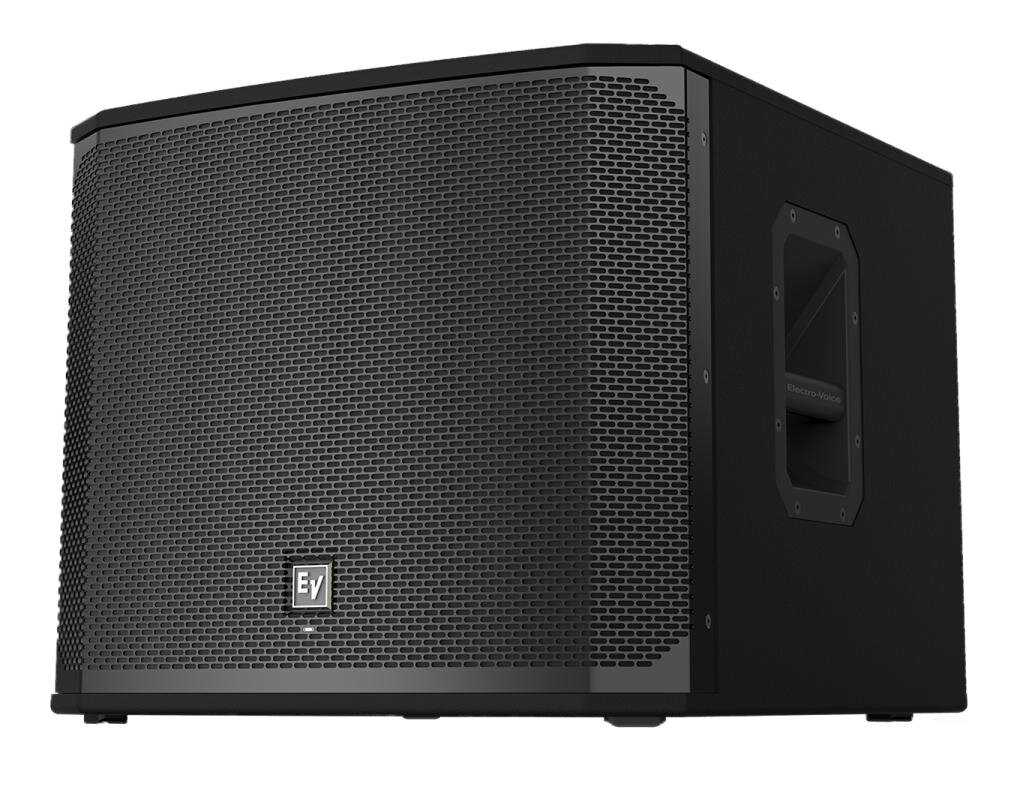

Electro-Voice EKX-15S, basová sústava, 15", 400W/1600W, 133dB peak
Electro-Voice EKX-15S, Data sheet
Electro-Voice EKX, User Manual
| Axial Sensitivity (SPL, 1 W @ 1 m) |
95 dB |
| Connector Type |
Dual NL4 |
| Enclosure Material |
15 mm, plywood with EVCoat |
| Frequency Response (-10 dB) |
40 Hz - 300 Hz Half Space Measurement |
| Frequency Response (-3 dB) |
60 Hz - 100 Hz Half Space Measurement |
| Grill |
18 AWG steel with powdercoat |
| LF Transducer |
EVS-15C 381 mm (15 in) |
| Maximum SPL |
133 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating |
| Minimum Impedance |
7.5 Ω |
| Nominal Impedance |
8 Ω |
| Power Handling (Continuous / Peak) |
400 W/1600 W |
| Recommended High-Pass Frequency |
35 Hz |
| Shipping Weight |
31.3 kg (69 lbs) |
| Height |
11RU 455 mm (17.91") |
| Width |
530 mm (20.87") |
| Depth |
551 mm (21.69") |
| Weight Net |
24.9 kg (54.9 lbs) |
