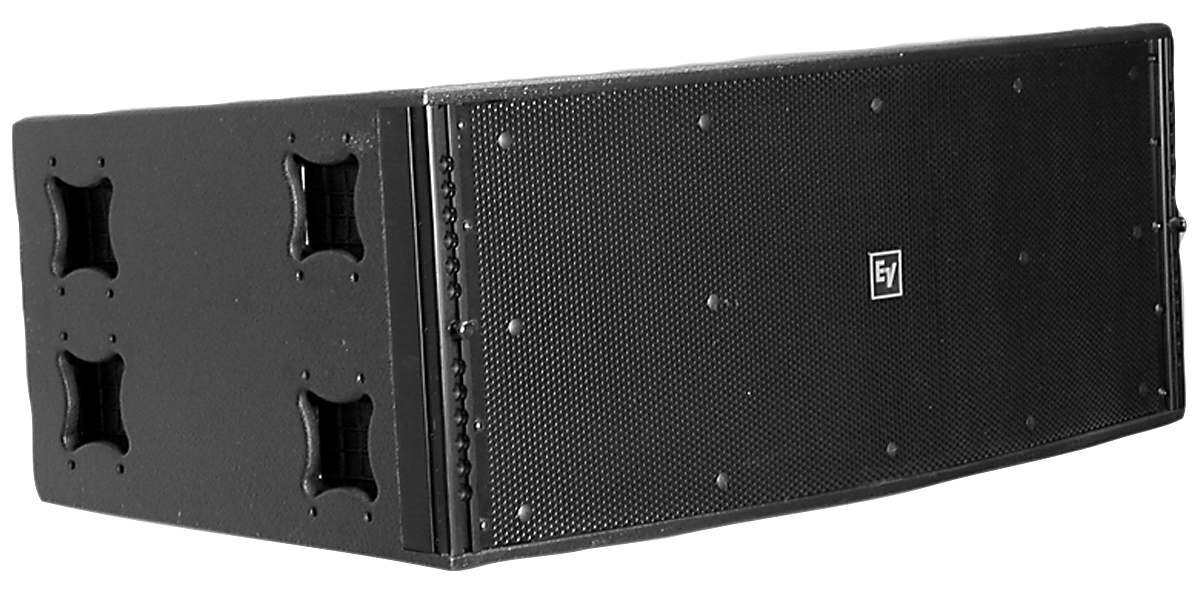

Electro-Voice Xvlt

3-pásmová sústava, 1200W/600W/225W (LF/MF/HF), 120°

Dostupnosť: Na otázku
Doručíme dňa:

3-pásmová sústava, 1200W/600W/225W (LF/MF/HF), 120°

Chassis Size	381 mm (15")
Color	Black
Environmental Specs	IEC 529 IP24, MIL STD 810
Input Connections	2 Neutrik® NL8
Peak SPL @ 10m	135 dB 4 Box Array @ 10 Meters
Frequency Response (-3 dB)	50 - 16,000 Hz
Frequency Response (-10 dB)	30 - 17,000 Hz
Internal Crossover	No
Recommended High-Pass Frequency	50 Hz
Sensitivity 1 W/1 m	97/107/114 dB
Max. SPL/1m (calc)	133 LF/141 MB/144 HF dB
Coverage (Nominal -6 dB) H	120 °
Coverage (Nominal -6 dB) V	8 ° Single Box @ 1 Meter
LF Transducer	2 x 15-in EVX-155PL
LF Power Handling	1200 W continuous, 4800 W peak Watts 50-200 Hz
HF Power Handling	225 W continuous, 900 W peak Watts 1200-8000 Hz
LF Nominal Impedance	4 Ω
MF Power Handling	600 W continuous, 2400 W peak Watts 300-2000 Hz
MF Transducer	2 x 8-in ND08
MF Nominal Impedance	8 Ω
HF Transducer	3 x 3-in ND6-16
HF Nominal Impedance	5.3 Ω
Enclosure Material	Birch plywood, textured epoxy paint
Flying	Yes
Outdoor	No
Grill	Powder-coated steel
Height	494.3 mm (19.46")
Width	1244.6 mm (49")
Depth	740.4 mm (29.15")
Weight Net	115 kg (253.53 lbs)
